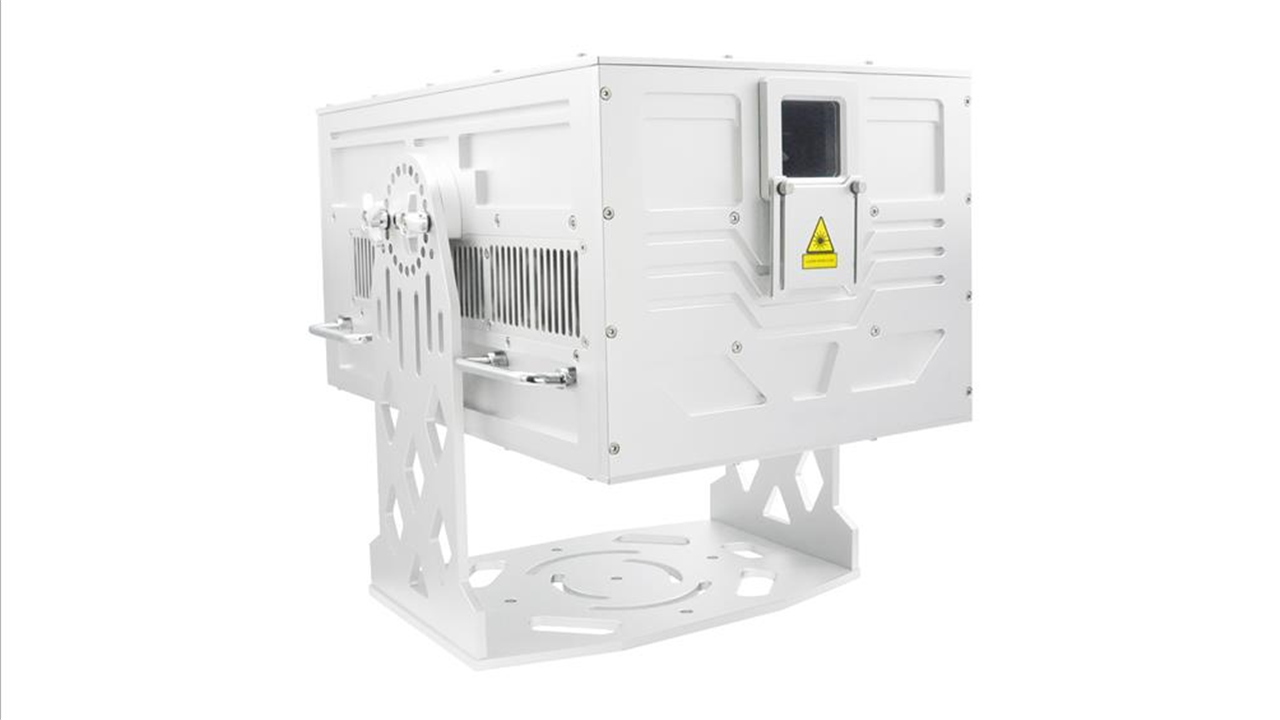

LAYU WP30RGB Waterproof RGB Laser Light Projector with IP65 Housing For Outdoor Landmark Building,Laser Show
LAYU WP30RGB Waterproof RGB Laser Light Projector with IP65 Housing For Outdoor Landmark Building,Laser Show
LAYU WP30RGB is a waterproof 30watt RGB laser light with IP65 housing. It is widely using in outdoor live events,theme park,festival laser show,landmark building,etc. It is made of full diode RGB laser module and with small beam and low divergence. It is good for both outdoor laser beam show and graphic show. It has guranteed 30watt RGB laser power output after front aperture.
CONTACT US
  • Phone:

    0086 13824366934
  • Email:

    sales02@szlayu.com
  • Telephone:

    David
  • Phone:

    0086 13823137197
  • Email:

    sales@szlayu.com
  • Telephone:

    Jessie Liu
  • LAYU WP30RGB Waterproof RGB Laser Light Projector with IP65 Housing For Outdoor Landmark Building,Laser Show
    Features

    1. Waterproof metal housing with IP65 rate.

    2. Full pure diode RGB laser with more stable performance and longer working life.The machine can work in -20°C- 50°C.

    3. Three floors designs.

    1) Top floor: Optical and electric components.

    2) Middle floor: Heat sink floor. The high speed fans will blow away the heat and keep the machine in good working temperature.

    3) Bottom floor: Power supply components.

    4. Made of analog laser modulation. Users can dimmer the laser brightness linearly to makes the laser light more colorful.

    5. There are some optional control hardware for your choice.
    1)Built in FB4. It can export programs from Quickshow software that no need to link the computer with the laser during the operation.

    Also users can link the laser light projector with computer software by RJ45 internet cable which is easy to get in the market.

    Quickshow is one of the popular laser control software in the market.There are about 2000 cues built inside.Users can edit the text,setting the display time code,draw their own programs in the software easily and the laser can show them out at the same time.
    2)Built in Showtower. It is Chinese hardware which is using Truwave software.It can export cues to the hardware and run in auto mode.
    Also can be control via Artnet or DMX.There are also lots of cues and graphics for your choice.You can make your own one too.



    Specification

    Model Number
    WP30RGB
    Guaranteed Power 30 watt
    Red Laser Power 8 watt
    Green Laser Power 10 watt
    Blue Laser Power 12 watt
    Beam Specification ca.: <7mm, divergence: <1.3mrad
    Scanner LY2309(35KPPS@8°) or DT50BB(35KPPS@8°)(optional)
    Max Scanning Angle 60°
    Patterns Built Inside More than 128 kinds of beam and graphics
    Machine Dimension 500*320*260mm(L*W*H)
    Net Weight 38Kgs
    Play Mode Auto,DMX,Master/Slave,ILDA
    Power Consumption 700 watt
    Input Voltage AC 100~250V,50/60HZ


    Package
