LAYU AT20RGB-FB4 is a very professional 20watt RGB laser light integrated with FB4. It is made of full diode RGB laser analog module and with very low divergence(<1.0mrad). Its total power is guranteed 20watt after front aperture and its housing is dust proof compacted designs. Customers don't need to worry about the dust and oil pollution.It can help you to save the maintenance costs. Because intergrated with FB4,customers can use Pangolin Quickshow software freely and also can export the programs from the Quickshow tothe FB4,then display the laser without linking to the computer.
CONTACT US
  • Phone:

    0086 13824366934
  • Email:

    sales02@szlayu.com
  • Telephone:

    David
  • Phone:

    0086 13823137197
  • Email:

    sales@szlayu.com
  • Telephone:

    Jessie Liu
  • tại 20-FB4
    Features

    1. Full pure diode RGB laser with more stable performance and longer working life.The machine can work in -20°C- 50°C.

    2. Three floors designs, more compacted and much lighter.

    1) Top floor: Optical and electric components. Dust proof designs, no maintenance costs. Electric components on the top floor, easyto install and replace. The heat is transmitted to the heat sink.

    2) Middle floor: Heat sink floor. The high speed fans will blow away the heat and keep the machine in good working temperature.

    3) Bottom floor: Power supply components.

    3. Made of analog laser modulation. Users can dimmer the laser brightness linearly to makes the laser light more colorful.

    4. Built in FB4. It can export programs from Quickshow software that no need to link the computer with the laser during the operation.

    Also users can link the laser light projector with computer software by RJ45 internet cable which is easy to get in the market.

    Quickshow is one of the popular laser control software in the market.There are about 2000 cues built inside.Users can edit the text,setting the display time code,draw their own programs in the software easily and the laser can show them out at the same time.
    Also can be control via Artnet or DMX.There are also lots of cues and graphics for your choice.You can make your own one too.

    Specification

    Model Number
    AT20RGB-FB4
    Guaranteed Power 20 watt
    Red Laser Power 6 watt
    Green Laser Power 6 watt
    Blue Laser Power 10 watt
    Beam Specification ca.: <7mm, divergence: <1.0mrad
    Scanner LY2309(35KPPS@8°) or DT50B(35KPPS@8°)(optional)
    Max Scanning Angle 60°
    Patterns Built Inside More than 2000 kinds of beam and graphics
    Machine Dimension 395*280*230mm(L*W*H)
    Net Weight 24Kgs
    Play Mode Auto,DMX,Master/Slave,ILDA
    Power Consumption 400 watt
    Input Voltage AC 100~250V,50/60HZ

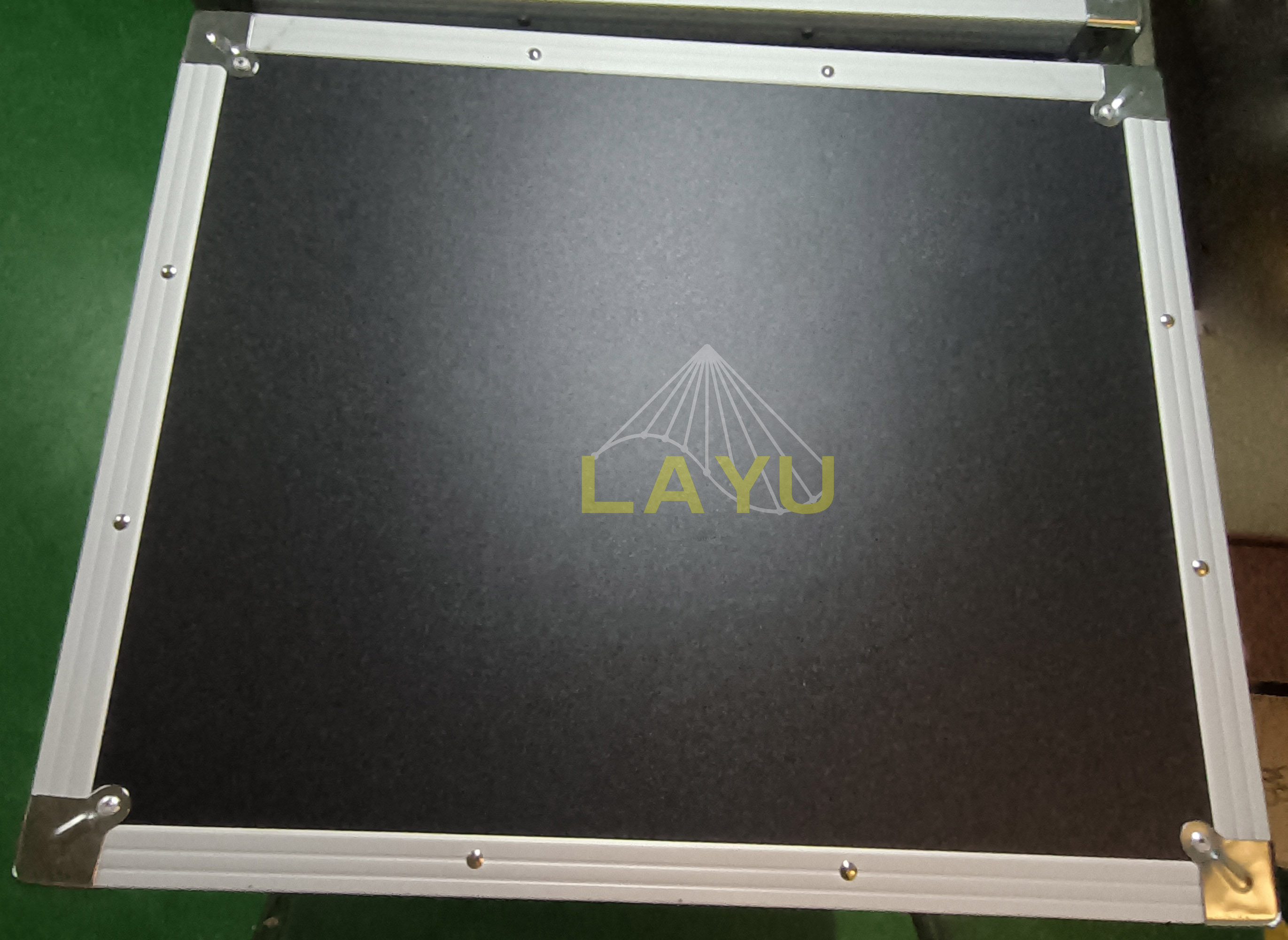

    Package
