LAYU AD60RGB 5W RGB Graphic DJ party Laser Light Projector
LAYU AD60RGB 5W RGB Graphic DJ party Laser Light Projector

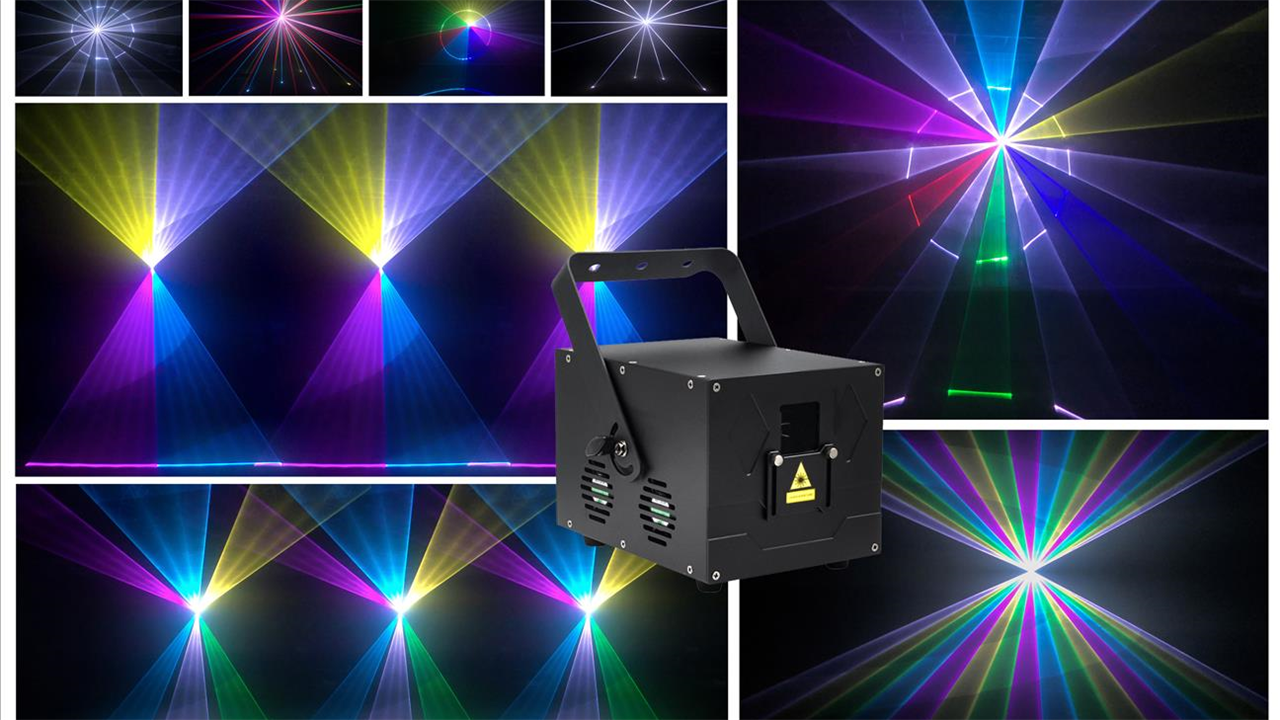

LAYU AD60RGB is a 5W RGB Graphic DJ KTV Laser Light Projector. It is a very compacted design laser with 5watt RGB laser power. It is very convenient for the mobile djs to carry it everywhere and good for family party too. There are more than 128 kinds of graphic and beam effects built inside. Users can choose graphic or beam show as per their demands.
  • Phone:

    0086 13824366934
  • Email:

  • Telephone:

  • Phone:

    0086 13823137197
  • Email:

  • Telephone:

    Jessie Liu
  • LAYU AD60RGB 5W RGB Graphic DJ party Laser Light Projector

    1. Full pure diode RGB laser with more stable performance and longer working life. It can work properly between -30°C and 40°C.

    2. Two floors designs, more compacted and much lighter.

    Top floor: Optical components. This floor has double protection designs to prevent dust and oil completely. It helps to prolong the life of the lighting.

    Bottom floor: big heat sink and electric components. Heat dissipation by strong air convection with big radiator.

    3. Built-in hundreds of beam and animation programs, suitable for more application

    4. Customized animation and line effect programs are available.
    5. Play Mode: DMX512 (10/34 channels), AUTO, Sound Active, ILDA Mode.
    . Safety configure: Single Beam Protection System (can switch ON or OFF; very important for high power laser lights). When switched on, the light will be closed automatically when a single point appears

    7. Applicable to KTV, discos, dance halls, bars, nightclubs and various large-scale performance venues.


    Model Number AD60RGB
    Garanteed Power 5 watt
    Red Laser Power 1.5 watt @638nm
    Green Laser Power 1.5 watt @525nm
    Blue Laser Power 2.0 watt @450nm
    Beam specification ca.: <7mm, Divergence: 1.4mrad
    Scanner LY25KPPS
    Max Scanning Angle 50°
    Patterns Built Inside More than 128 kinds of beam and graphics
    Machine Dimension 240*175*160mm
    Net Weight 4.0Kgs
    Play Mode Auto,Sound Active,DMX,Master/Slave,ILDA
    Power Consumption 70 watt
