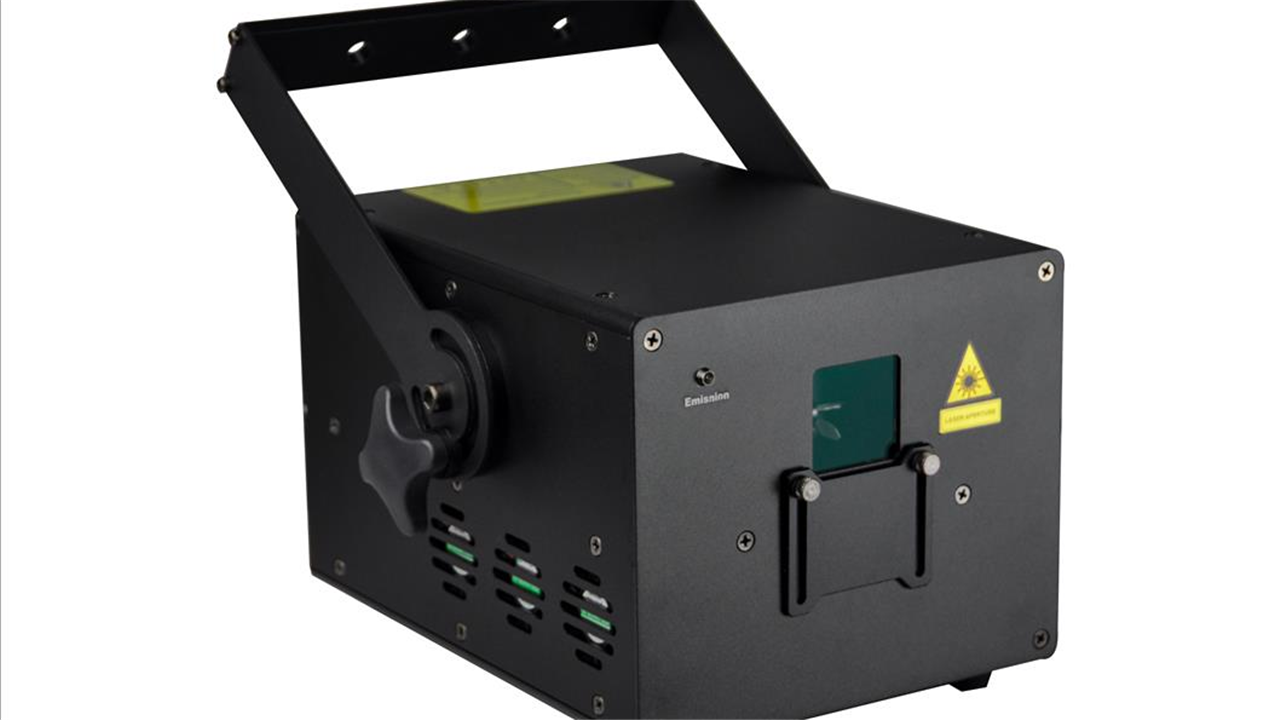

LAYU AL08RGB 8W RGB Graphic Club Laser Light Projector
LAYU AL08RGB 8W RGB Graphic Club Laser Light Projector
LAYU AL08RGB is a 8W RGB laser projector made of full diodes. There are more than 200 kinds of graphics and beam effects built inside the projector. It can run automatically or controlled via ILDA interface by laser controlled software,such as Quickshow,Beyond,Truwave,etc. Also for the club users,they can control it via DMX console,such as MA2,Tiger,Avolite console,etc. For its brightness and strong functions,people are widely using it in nightclubs,live events,stage,etc.
  • Phone:

    0086 13824366934
  • Email:

  • Telephone:

  • Phone:

    0086 13823137197
  • Email:

  • Telephone:

    Jessie Liu
  • LAYU AL08RGB 8W RGB Graphic Club Laser Light Projector

    1. Dust proof designs.Lower the maintenance costs to minimum.

    Top floor is optics floor and electornic floor.It is sealed to keep the smoke and dust outside.

    Below floor is for heat sinking. 3pcs high speed fan will blow the heat away quickly.

    2. Full diode laser module.And all the modules are analog modulation that can have more colorful laser show.

    3. More than 200 kinds of graphics and beam effects built inside the laser.You can store  more patterns into the TF card too.

    If you want to do some simple laser shows,you can use the free software inside the TF card to edit your own programs too.

    For the laser beginner and the limited users,this is a very good choice model.

    4. LCD display technology.It is easy to know and understand the setting. And can set the pattern size,scanning speed,color,sensitive,etc in the menu.

    5. Safety: Key lock,remote interlock,scanner failure protection system,flying ring,etc.


    Model Number
    Guaranteed Power
    8 watt
    Red Laser Power 2 watt
    Green Laser Power 2 watt
    Blue Laser Power 4 watt
    Beam specification ca. : <6mm, divergence: <1.2mrad
    Scanner LY40(40KPPS@8°)
    Max Scanning Angle 60°
    Patterns Built Inside More than 200 kinds of beam and graphics
    Machine Dimension 280*195*165mm
    Net Weight 7.5Kgs
    Play Mode Auto,Sound Active,DMX,Master/Slave,ILDA,TF card
    Power Consumption 150 watt
